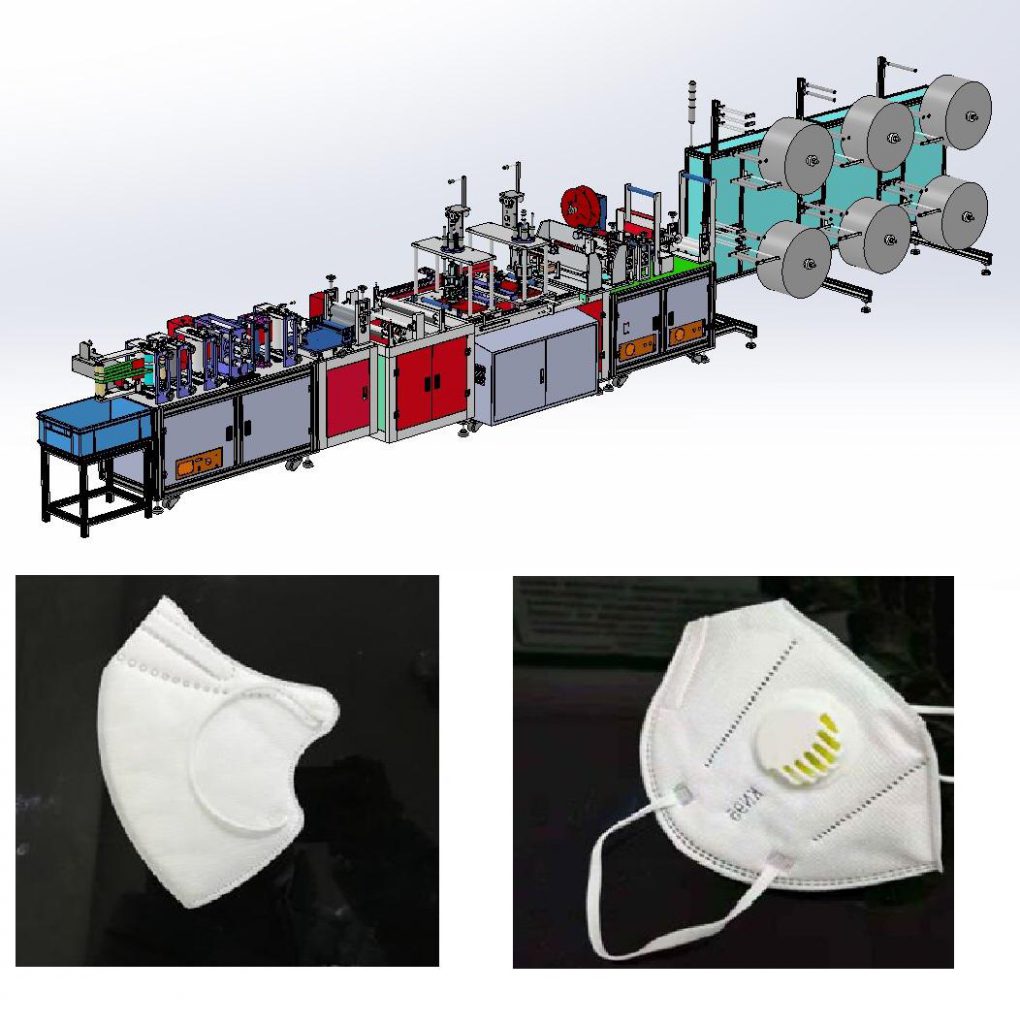

Mask Machines for Surgical Product
| Mask Machine Type | Face Mask Machine |
| Brand | Dantechs |
| Mask Type | Surgical Mask with 3 layers |
| PLC-Control | Siemens |
| Control Type | Full Automatic ,servo control |
| Raw Material Type | 3 layers of non-woven |
| Boxing Operation | Full Automatic Boxing Machine |
| Capacity | 90-120 Pieces/minute |
| Welding Type | 4-5 Ultra Sonic Welding Units are used |
| Ultrasonic Welding Performance | 4000-5000 welding operation |
| Tension Control | Automatic tension control |
| Quality and Control | Optical Sensor |
| Capability | Capable to produce 1 to 4-layer main part of the mask. |
| Capability | Capable to keep track of batch count and total count. |
| Body | AISI 304 and all components used are of German origin. |
| Dimensions | 7000mm (L) × 4500mm (W) × 1900mm (H) (Excluding transfer line); |
| Equipment weight | Mass per area 500kg/m2; |
| Power requirement | 220 VAC ± 5 V, 50HZ, ~11 KW Nominal Power; |
| Pressurized air | 6-8 bar, operating flow rate 300L/min |
| Working conditions | 10-35 °C |
| Raw material of mask | Material list can be provided with machine |
Machines for FFP1, FFP2, N95
| Mask Machine Type | N95 Mask Machine |
| Brand | Dantechs |
| Mask Type | FFP1, FFP2, N95 |
| PLC-Control | Siemens |
| Control Type | Full Automatic ,servo control |
| Raw Material Type | 3 layers of non-woven |
| Boxing Operation | Full Automatic Boxing Machine |
| Capacity | 50-60 Pieces/minute |
| Welding Type | 4-5 Ultra Sonic Welding Units are used |
| Ultrasonic Welding Performance | 4000-5000 welding operation |
| Tension Control | Automatic tension control |
| Quality and Control | Optical Sensor |
| Capability | Capable to produce 3 to 5-layer main part of the mask. |
| Capability | Capable to keep track of batch count and total count. |
| Body | AISI 304 and all components used are of German origin. |
| Dimensions | 7000mm (L) × 4500mm (W) × 1900mm (H) (Excluding transfer line); |
| Equipment weight | Mass per area 500kg/m2; |
| Power requirement | 220 VAC ± 5 V, 50HZ, ~11 KW Nominal Power; |
| Pressurized air | 6-8 bar, operating flow rate 300L/min |
| Working conditions | 10-35 °C |
| Raw material of mask | Material list can be provided with machine |
